Khoom Description
Rov qab Dutch Weave Stainless Hlau Hlau Mesh yog qhov txawv ntawm nws cov xov hlau tuab dua thiab cov xov hlau tsawg dua piv rau cov qauv Dutch weave, uas ua rau muaj zog thiab ruaj khov mesh. Cov qauv thim rov qab no tsim cov ntaub lim dej uas muaj zog zoo rau cov ntawv thov uas ob qho tib si qhov cua thiab lub teeb kis tau tus mob tseem ceeb, xws li hauv kev lag luam marine, kev kho dej khib nyiab, thiab kev ua tshuaj lom neeg. Ua los ntawm cov khoom zoo stainless hlau zoo li AISI304, AISI 304L, AISI 316, thiab AISI 316L, nws muaj kev tiv thaiv corrosion zoo heev thiab ua haujlwm kub. Lub mesh tseem paub txog nws qhov sib xws, qhov chaw tiaj tus, thaj chaw lim dej dav dav, thiab pom kev ua haujlwm zoo. Nws versatility yog ntxiv txhim khu kev qha los ntawm lub peev xwm los customize lub mesh suav, hlau txoj kab uas hla, thiab thickness kom haum rau tej kev xav tau kev pab. Siv nyob rau hauv ntau yam kev lag luam, suav nrog roj av, tshuaj, khoom noj, thiab tshuaj, Reverse Dutch Weave Stainless Hlau Hlau Mesh yog ib qho tseem ceeb ntawm cov txheej txheem uas yuav tsum tau pom zoo thiab lub zog siab.
Weaving hom:
Plain Weave
Twill Weave
Plain Dutch Weave
Product Technical Parameters:
Cov khoom siv xaiv:
SUS 302: Kev siv dav dav nrog kev ua haujlwm zoo corrosion.
SUS304:Zoo heev corrosion thiab oxidation kuj rau ntau qhov chaw.
SUS 316:Superior corrosion kuj, zoo tagnrho rau marine los yog high-chloride ib puag ncig.
SUS316L:Tsawg carbon version ntawm SUS316, muab kev tiv thaiv corrosion thiab oxidation.
|
Mesh suav |
Hlau txoj kab uas hla (mm) |
Thickness (hli) |
Dav (mm) |
|
54*15 |
0.45*0.6 |
1.75 |
50--800 |
|
72*15 |
0.45*0.55 |
1.7 |
50--800 |
|
132*17 |
0.23*0.45 |
1.2 |
50--1000 |
|
160*18 |
0.28*0.45 |
1.27 |
50--1000 |
|
200*40 |
0.17*0.27 |
0.7 |
50--1500 |
|
260*40 |
0.15*0.27 |
0.65 |
50--1500 |
|
300*40 |
0.13*0.27 |
0.65 |
50--1500 |
|
350*40 |
0.13*0.27 |
0.6 |
50--1500 |

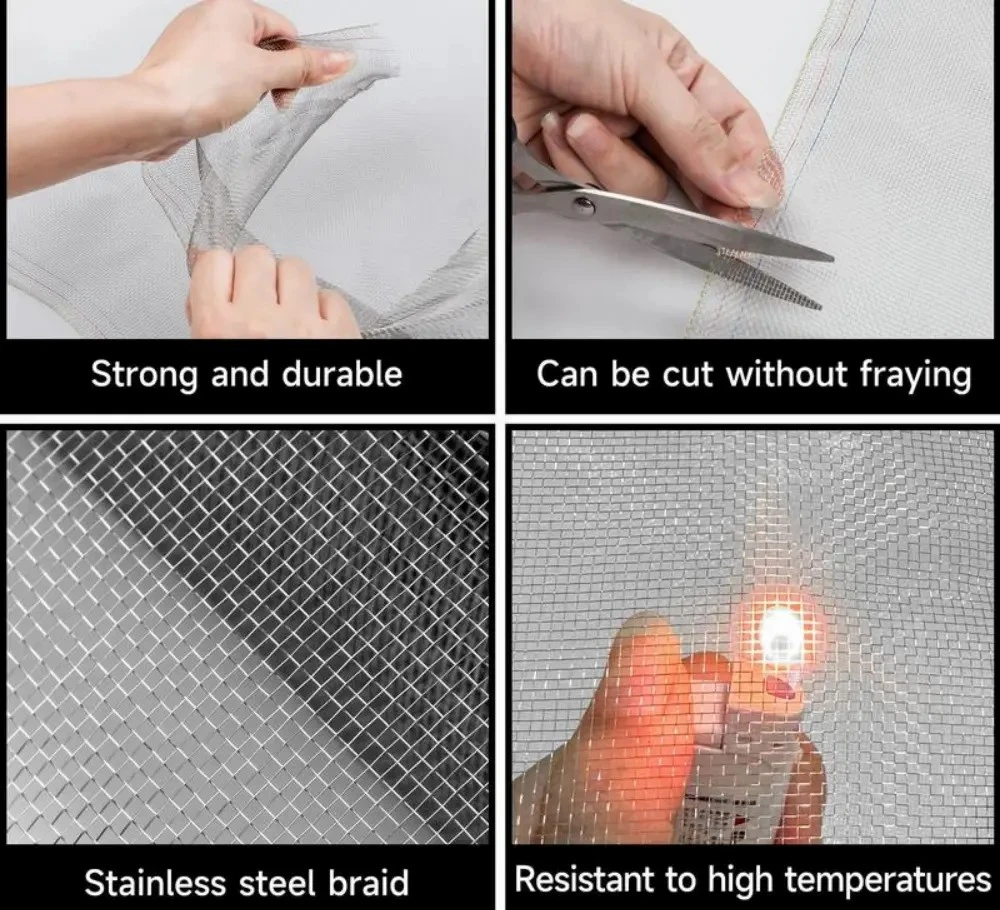

Khoom nta
1. Kev tsim kho ruaj khov:Ua los ntawm high-strength stainless hlau, no hlau mesh muaj tshwj xeeb durability thiab tsis kam mus corrosion, haum rau mus sij hawm ntev siv nyob rau hauv ntau qhov chaw.
2. Enhanced Tensile Strength:Rov qab Dutch Weave tsim muab lub zog tensile ntau dua piv rau cov tsoos weaves, ua rau nws zoo tagnrho rau cov ntawv thov uas yuav tsum tau muaj zog thiab kev ntseeg tau.
3. Recision Lim:Nrog nws cov qauv zoo ib yam thiab meej qhov pore loj, cov mesh no ua kom pom kev ua tau zoo, khaws cov khoom zoo.
4. Tshuaj thiab kub tsis kam: Exhibits zoo heev tsis kam mus rau ntau yam ntawm cov tshuaj, acids, alkali, thiab corrosion, thaum tseem tiv taus kub, uas yog ib qho tseem ceeb rau industrial filtration txheej txheem.
5. Customizable Specifications: Muaj nyob rau hauv ntau yam mesh suav, hlau diameters, thiab thicknesses, tso cai rau customization kom tau raws li cov kev cai pom nyob rau hauv txawv industries.
6. Kev siv ntau yam:Nws qhov kev hloov pauv tau ua rau nws qhov kev xaiv zoo tshaj plaws hauv ntau qhov chaw, suav nrog roj av, tshuaj lom neeg, kev ua zaub mov, thiab tshuaj, qhov chaw pom zoo yog qhov tseem ceeb.
7.Kev Ua Haujlwm Ntev Ntev:Kev sib xyaw ua ke ntawm cov ntaub ntawv zoo thiab cov txheej txheem tsim khoom ua tau zoo ua rau cov hlau mesh uas tuav nws txoj kev ncaj ncees thiab kev ua tau zoo nyob rau lub sijhawm, txawm tias muaj kev xav tau.
Khoom siv
Industrial Lim:Nws yog siv rau sifting grainy cov ntaub ntawv, hmoov, thiab nyob rau hauv filtration txheej txheem rau cov kua thiab gases, ua rau nws tseem ceeb nyob rau hauv ib tug ntau yam ntawm industries.
Mining:Cov mesh yog siv rau kev txheeb xyuas thiab ua cov ntxhia, ua lub luag haujlwm tseem ceeb hauv cov mining sector.
Roj thiab Chemical Industries:Nws yog siv los lim cov txheej txheem hauv cov kev lag luam no.
Khoom noj khoom haus thiab Pharmaceuticals:Lub mesh yog qhov tseem ceeb hauv kev tswj xyuas kom zoo thiab cov txheej txheem tsim khoom hauv ob qho tib si zaub mov thiab chaw muag tshuaj.
Machinery Manufacturing:Nws yog ib qho tseem ceeb hauv kev tsim kho thiab kev ua haujlwm ntawm cov tshuab.
Kev Tshawb Fawb Txog Kev Tshawb Fawb:Nws yog siv rau hauv kev sim teeb tsa thiab kev tshawb fawb cov haujlwm.
Aviation:Lub mesh yog siv rau hauv ntau yam kev lag luam aviation ntsig txog kev tsim khoom thiab kev saib xyuas.

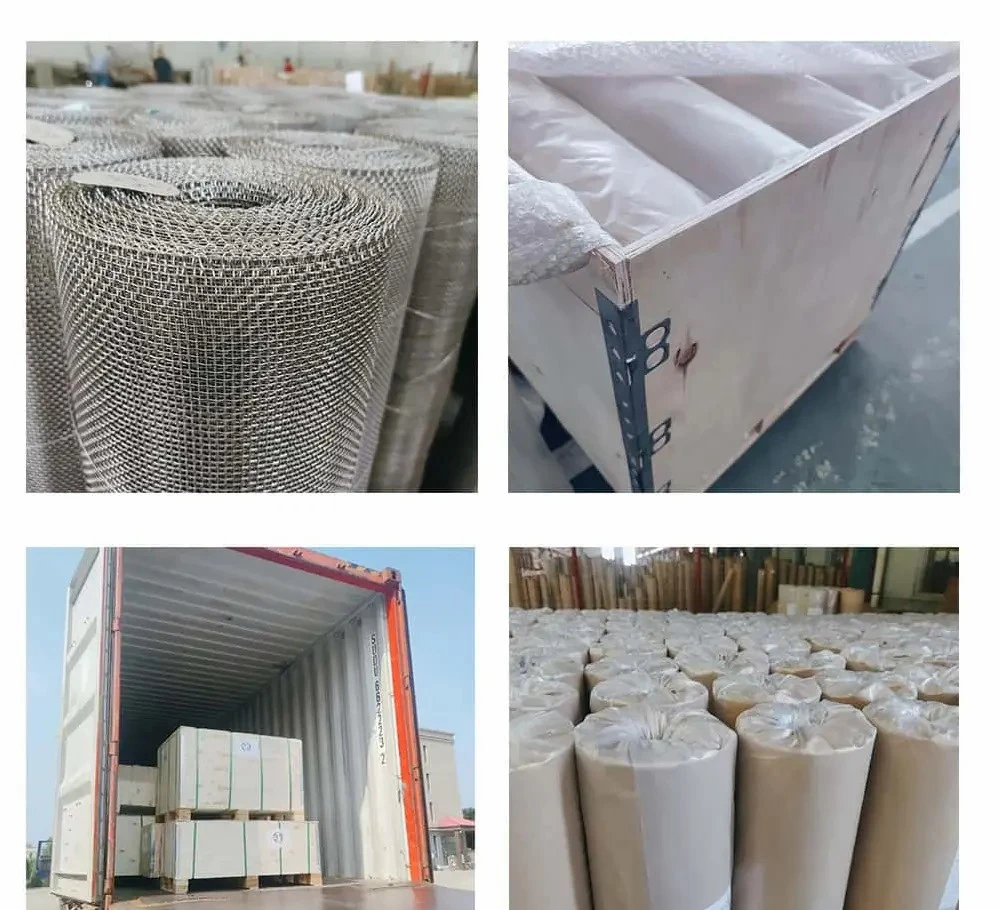

Ntim
