Khoom Description

Plain weave stainless hlau xaim mesh yog cov khoom siv ntau yam paub txog nws cov kav ntev thiab ua haujlwm rau corrosion. Nws yog tus cwj pwm los ntawm nws qhov yooj yim tab sis zoo weave qauv, qhov twg txhua cov hlau hla dhau ib qho thiab nyob rau hauv ib qho kev sib raug zoo thiab sib hloov, tsim kom muaj ib qho qauv thiab nruj. Hom mesh no feem ntau siv nyob rau hauv ntau qhov kev lag luam vim nws lub zog, kev zoo nkauj, thiab kev saib xyuas yooj yim. Nws feem ntau yog siv rau hauv cov ntawv thov xws li kev pom, kev tsim kho, thiab kev ua liaj ua teb, qhov twg nws tiv thaiv xeb thiab muaj peev xwm tiv taus qhov hnyav hnyav yog qhov tshwj xeeb. Lub tiaj weave qauv kuj ua kom ntseeg tau tias cov mesh tuav nws cov duab thiab kev ncaj ncees nyob rau hauv kev ntxhov siab, ua rau nws yog qhov kev xaiv zoo rau kev siv mus ntev.

Weaving hom:

Plain Weave

Twill Weave

Plain Dutch Weave

Twill Dutch Weave

2001

Product Technical Parameters:

Khoom siv:Kev xaiv ntawm stainless hlau qib xws li 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, nrog rau super duplex stainless hlau, duplex stainless hlau, thiab kev xaiv rau cov ntaub ntawv kev cai.

Qhov Hom:Lub mesh yog muaj nyob rau hauv ob qho tib si square los yog lub qhov configurations kom haum rau ntau yam kev xav tau.

Kev kho deg:Cov hlau mesh dhau los ua cov txheej txheem xws li pickling thiab passivation rau corrosion kuj, nrog rau polishing rau ib tug du tiav.

Ntim:

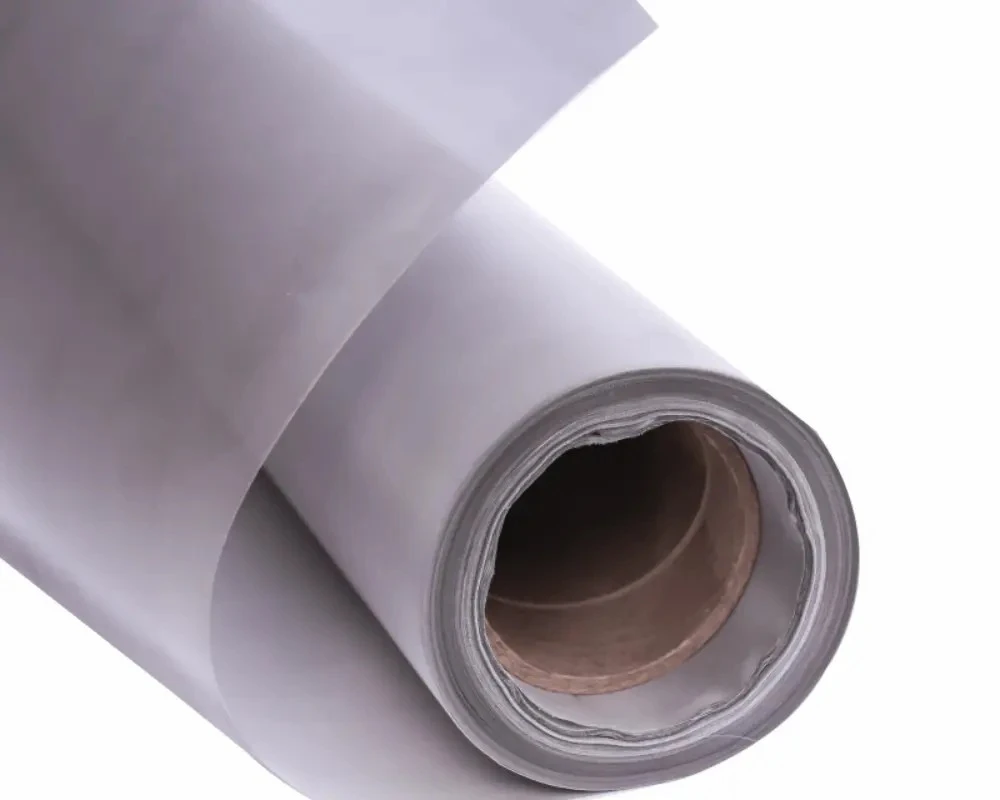

Rolls:Txhua yob yog muab qhwv rau hauv daim ntawv paj ntaub thiab muab ntim rau hauv ib lub thawv los yog muab tso rau ntawm lub pallet rau kev tiv thaiv thaum xa khoom.

Cov ntawv: Cov nplooj ntawv ntawm cov hlau mesh tau ntim rau hauv cov thawv ntoo los yog txheej txheem ntawm cov pallets kom ntseeg tau tias lawv nyob twj ywm tsis muaj kev puas tsuaj thaum lub sijhawm thauj mus los.

Specification Cov ntaub ntawv ntawm Stainless Hlau Hlau Mesh / Woven Wire Cloth
Meshes Ib Linear Inch	Txoj kab uas hla		Dav ntawm Qhib		Qhib Thaj tsam%
Meshes Ib Linear Inch	Ntiv	mm	Ntiv	mm	Qhib Thaj tsam%
1	0.135	3.5	0.865	21.97	74.8
1	0.120	3.0	0.880	22.35	77.4
1	0.105	2.5	0.895	22.73	80.1
1	0.080	2.0	0.920	23.36	84.6
3/4"	0.120	3.0	0.630	16.00	70.5
3/4"	0.080	2.0	0.670	17.01	79.8
2 x 2	0.120	3.0	0.380	9.65	57.8
2 x 2	0.105	2.5	0.395	10.03	62.4
2 x 2	0.080	2.0	0.420	10.66	70.6
2 x 2	0.063	1.6	0.437	11.10	76.4
2 x 2	0.047	1.2	0.453	11.50	82.1
3 x 3	0.080	2.0	0.253	6.42	57.6
3 x 3	0.063	1.6	0.270	6.85	65.6
3 x 3	0.047	1.2	0.286	7.26	73.6
4 x 4	0.080	2.0	0.170	4.31	46.2
4 x 4	0.063	1.6	0.187	4.75	56.0
4 x 4	0.047	1.2	0.203	5.15	65.9
5 x 5	0.047	1.2	0.153	3.88	58.5
5 x 5	0.041	1.0	0.159	4.01	63.2
6 x 6	0.063	1.6	0.104	2.64	38.9
6 x 6	0.047	1.2	0.120	3.04	51.8
6 x 6	0.035	0.9	0.132	3.35	62.7
8 x 8	0.063	1.6	0.062	1.57	24.6
8 x 8	0.047	1.2	0.078	1.98	38.9
8 x 8	0.035	0.9	0.090	2.28	51.8
8 x 8	0.032	0.8	0.093	2.36	55.4
8 x 8	0.028	0.7	0.097	2.46	60.2
10 x 10	0.047	1.2	0.053	1.34	28.1
10 x 10	0.035	0.9	0.065	1.65	42.3
10 x 10	0.032	0.8	0.068	1.27	46.2
10 x 10	0.025	0.63	0.075	1.90	56.3
12 x 12	0.041	1.0	0.042	1.06	25.4
12 x 12	0.035	0.9	0.048	1.22	33.2
12 x 12	0.032	0.8	0.051	1.29	37.5
12 x 12	0.028	0.7	0.055	1.39	43.6
12 x 12	0.023	0.58	0.060	1.52	51.8
14 x 14	0.032	0.8	0.039	1.52	29.8
14 x 14	0.025	0.63	0.046	0.99	41.5
14 x 14	0.023	0.58	0.048	1.22	45.2
14 x 14	0.020	0.5	0.051	1.30	51.0
16 x 16	0.028	0.7	0.035	0.89	30.5
16 x 16	0.023	0.58	0.040	1.01	39.9
16 x 16	0.018	0.45	0.045	1.14	50.7
18 x 18	0.020	0.5	0.036	0.91	41.1
18 x 18	0.018	0.45	0.038	0.96	48.3
20 x 20	0.023	0.58	0.027	0.68	29.2
20 x 20	0.020	0.5	0.030	0.76	36.0
20 x 20	0.018	0.45	0.032	0.81	41.0
20 x 20	0.016	0.40	0.034	0.86	46.2
24 x 24	0.014	0.35	0.028	0.71	44.2
28 x 28	0.010	0.25	0.026	0.66	51.8
30 x 30	0.013	0.33	0.020	0.50	37.1
30 x 30	0.012	0.30	0.021	0.53	40.8
35 x 35	0.012	0.30	0.017'	0.43	33.8
35 x 35	0.010	0.25	0.019	0.48	42.4
40 x 40	0.014	0.35	0.011	0.28	19.3
40 x 40	0.012	0.30	0.013	0.33	27.4
40 x 40	0.010	0.25	0.015	0.38	36.0
40 x 40	0.0095	0.24	0.016	0.40	38.4
50 x 50	0.009	0.23	0.011	0.28	30.3
60 x 60	0.0075	0.19	0.009	0.22	30.5
70 x 70	0.0065	0.17	0.008	0.20	29.8
80 x 80	0.0070	0.18	0.006	0.15	19.4
80 x 80	0.0055	0.14	0.007	0.17	31.4
90 x 90	0.0055	0.14	0.006	0.15	25.4
100 x 100	0.0045	0.11	0.006	0.15	30.3
120 x 120	0.0040	0.10	0.0043	0.11	26.6
120 x 120	0.0037	0.09	0.005	0.12	30.7
150 x 150	0.0026	0.066	0.0041	0.10	37.4
165 x 165	0.0019	0.048	0.0041	0.10	44.0
180 x 180	0.0023	0.058	0.0032	0.08	33.5
180 x 180	0.0020	0.050	0.0035	0.09	41.1
200 x 200	0.0020	0.050	0.003	0.076	36.0
200 x 200	0.0016	0.040	0.0035	0.089	46.0
220 x 220	0.0019	0.048	0.0026	0.066	33.0
230 x 230	0.0014	0.035	0.0028	0.071	46.0
250 x 250	0.0016	0.040	0.0024	0.061	36.0
270 x 270	0.0014	0.040	0.0022	0.055	38.0
300 x 300	0.0012	0.030	0.0021	0.053	40.1
325 x 325	0.0014	0.040	0.0017	0.043	30.0
325 x 325	0.0011	0.028	0.0020	0.050	42.0
400 x 400	0.0010	0.025	0.0015	0.038	36.0
500 x 500	0.0010	0.025	0.0011	0.028	25.0
635 x 635	0.0009	0.022	0.0006	0.015	14.5

Khoom nta

Corrosion Resistance thiab Durability:Lub mesh yog crafted los ntawm ntau qib ntawm stainless hlau, uas ua kom muaj qhov tshwj xeeb tiv thaiv corrosion thiab ncua kev pab cuam lub neej nyob rau hauv ntau qhov chaw.

Uniformity thiab lub zog:Lub tiaj weave qauv muab cov qauv zoo ib yam nrog lub zog tensile siab, ua rau cov mesh txhim khu kev qha rau cov ntawv thov uas xav tau kev faib tawm ntawm cov quab yuam thiab tsis kam mus rau deformation.

Versatility thiab Customizability:Muaj nyob rau hauv ntau yam ntawm stainless hlau hom thiab customizable nyob rau hauv cov nqe lus ntawm hlau gauge, mesh loj, thiab weave qauv, nws muaj peev xwm yuav tailored kom tau raws li cov kev cai ntawm kev lag luam.

Kev kho qis:Cov hlau tsis muaj steel muaj pes tsawg leeg yuav tsum tau saib xyuas tsawg kawg nkaus, txo cov nqi kho thiab ua kom muaj kev ua haujlwm ntev yam tsis tas yuav tsum tau hloov pauv lossis kho ntau zaus.

Aesthetic thiab Functional:Nrog nws cov sleek tsos thiab kev ua haujlwm tsim, tiaj weave stainless hlau xaim mesh yog tsim rau ob qho tib si zoo nkauj thiab kev ua haujlwm, los ntawm architecture mus rau kev tshuaj ntsuam xyuas.

Kev Nyab Xeeb thiab Kev Nyab Xeeb:Lub mesh lub zog thiab ruaj khov ua rau nws zoo tagnrho rau kev siv kev nyab xeeb, xws li cov ntxaij vab tshaus kev ruaj ntseg thiab cov teeb meem, muab kev tiv thaiv kev tiv thaiv kev nkag mus tsis raug cai lossis ib puag ncig kev puas tsuaj.

Khoom siv

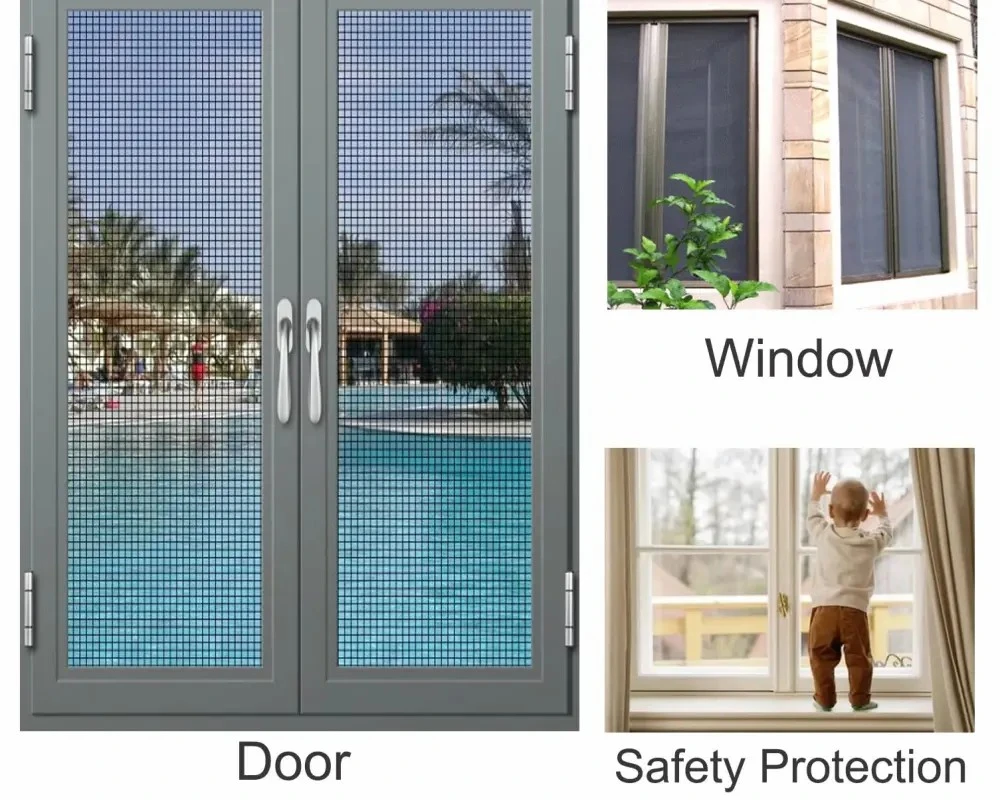

Kev tsim kho thiab Architecture:Nws yog siv los tiv thaiv kev nyab xeeb rau lub qhov rais thiab balconies, muab kev ruaj ntseg yam tsis muaj kev cuam tshuam kev pom. Tsis tas li ntawd, nws tau txais txiaj ntsig zoo rau nws txoj kev zoo nkauj hauv cov qauv tsim vaj tsev, tsim kom muaj kev niaj hnub thiab zoo nkauj nrog kev sib cuam tshuam ntawm lub teeb thiab duab ntxoov ntxoo.

Kev ua zaub mov:Stainless hlau 316L qib hlau mesh yog siv los ua cov khoom siv lim dej thiab cais cov khib nyiab, ua kom cov zaub mov muaj kev nyab xeeb thiab zoo.

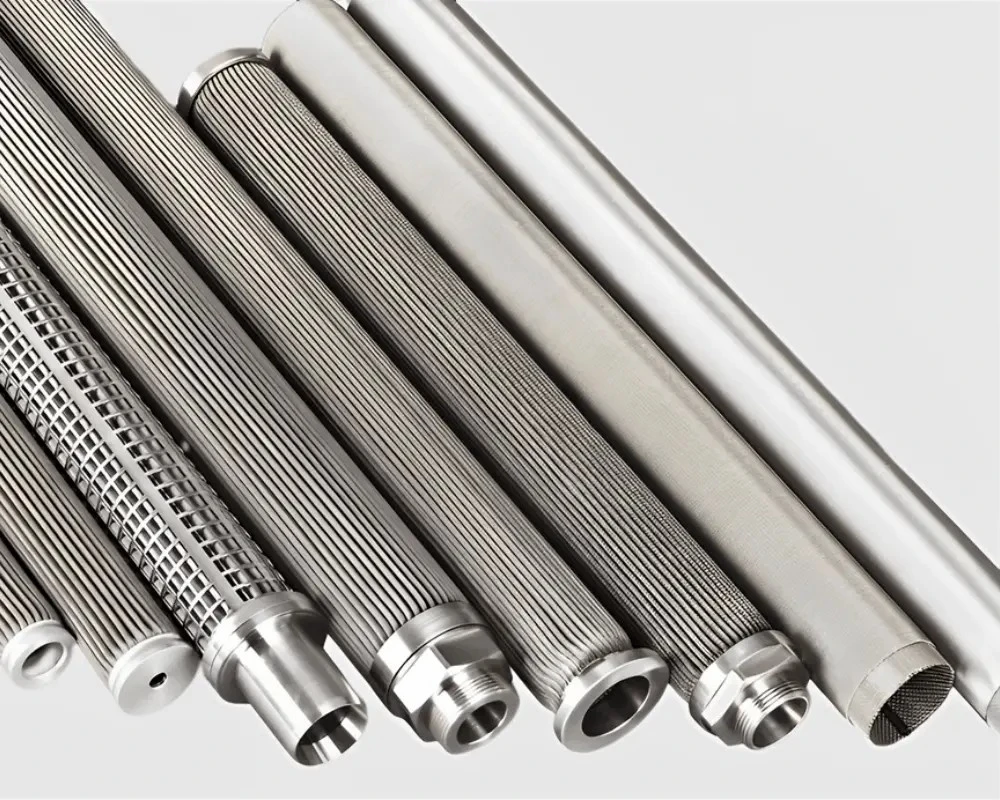

Filtration Systems:Nws yog siv nyob rau hauv cov dej khib nyiab kho cov nroj tsuag los lim cov kab mob los ntawm cov dej phwj tuaj, kom ua tau raws li kev cai ib puag ncig. Nws kuj tseem siv rau hauv cov tshuab lim kom cais cov kua dej los ntawm kev txiav thiab cov khib nyiab hauv kev lag luam roj thiab roj

Mining thiab Chemical Industriess: Nws yog dav siv nyob rau hauv mining, tshuaj fiber ntau, roj av, thiab tshuaj industries rau daim ntaub ntawv xws li ore thiab slurry sib cais, kom ntseeg tau zoo rov qab ntawm cov zaub mov muaj txiaj ntsig.

Electronics Kev Lag Luam:Nws yog siv rau electromagnetic shielding los tiv thaiv cov khoom siv hluav taws xob rhiab heev los ntawm kev cuam tshuam, nrog rau hauv kev pom huab cua thiab kua hauv cov txheej txheem tsim hluav taws xob.
