Universal OEM Compatibility nrog Enhanced Engineering Standards
Hloov cov nplooj siab cov ntsiab lus hauv cov hlab ntsha uas twb muaj lawm feem ntau nthuav tawm cov kev sib tw loj heev. Tawm ntawm-- txee generic hloov chaw feem ntau raug kev txom nyem los ntawm qhov sib txawv me me, tawm - ntawm - square ncej ciam teb, thiab mob - haum lub qhov hluav taws xob nozzles. Cov teeb meem kev tsim khoom no ua rau nyuaj rau kev teeb tsa, qhia kev sib khi, lub tshuab foob tsis ua haujlwm, thiab cov ntug dej ntws mus ntev thaum ua haujlwm.
PebPrecision-Fit Stainless Hlau Siab Siab Nplooj Element Assembliestxuas qhov sib txawv ntawm universal OEM compatibility thiab txhim khu kev qha engineering.
Peb siv cov ntaub ntawv dav dav ntawm thoob ntiaj teb kev kam rau lub nkoj-xws li Amafilter, Sharplex, Sparkler, thiab Niagara specifications- los tsim kev poob- hauv cov nplooj hloov pauv uas haum rau koj cov lus qhia txog lub nkoj uas twb muaj lawm. Txhua lub thav duab sab nrauv yog laser- muaj tseeb kom tswj tau tus kab pheeb ces kaum squareness kam rau ua. Ua ke nrog automated 360-degree robotic TIG ciam vuam thiab hydraulically ua ntej-tensioned multi-layer mesh packs, peb cov rooj sib txoos rov qab 100% thawj zaug ntws flux thaum tiv thaiv kev cuam tshuam ntawm cov txheej txheem nyob rau hauv qhov sib txawv siab mus txog 6.5 Bar.
Paub meej
Technical Specifications & Dimension Tolerances
Peb universal hloov cov ntsiab lus yog tsim los rau nruj industrial kam rau ua:
| Dimensional & Performance Parameter | Generic Aftermarket Standard | Peb Precision -Fit Assembly Spec |
| Diagonal Squareness kam rau ua | Ntau tshaj los yog sib npaug rau 0.4mm (Nyob rau hauv phau ntawv khi) | Tsawg dua los yog sib npaug li 0.2 hli Laser-Verified Precision |
| Tawm ntawm - ntawm -Flatness Bow Tolerance | Ntau dua los yog sib npaug li 0.5mm thoob plaws vaj huam sib luag qhov siab | Tsawg dua los yog sib npaug rau 1.5mm Tswj Vaj Huam Sib Luag Flatness |
| Nozzle Junction Machining | Standard cam khwb cia / welded raj | CNC-Machined O-Nplhaib / Flat Gasket Neck |
| Perimeter ciam teb Weld | Intermittent chaw welds | Nruam 360℃Automated Hermetic TIG Weld |

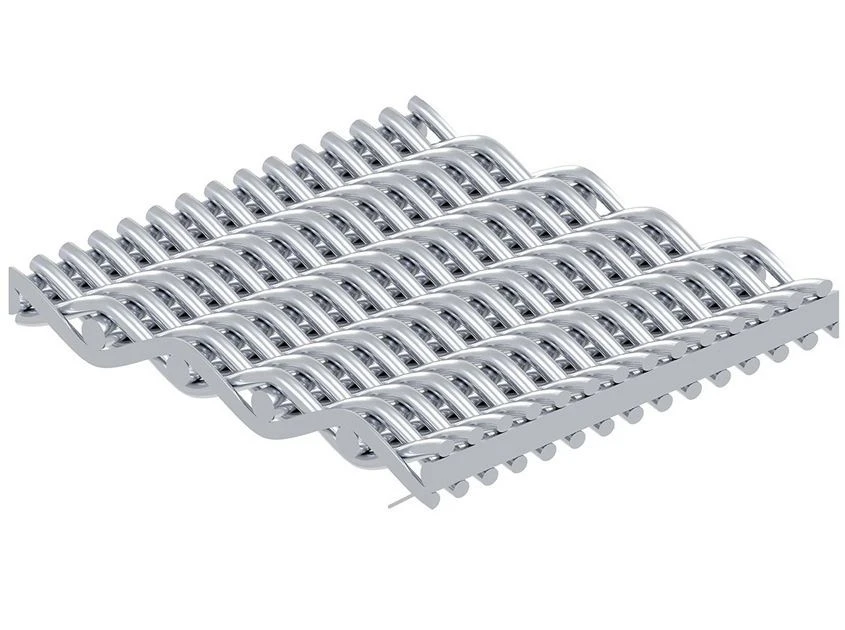

| Mesh Surface Tension | Phau ntawv txhais tes - ncab daim tawv nqaij | Hydraulic Pre-Tensioned Tsis yog-Nesting Matrix |
| Kev kub siab Surge Resistance | Max 4.0 Bar | Kev ua haujlwm tsis tu ncua mus txog 6.5 Bar |
Cov txiaj ntsig tseem ceeb tau txais txiaj ntsig hauv peb txoj kev tsim khoom
● Zero-Kev Sib Nqus Vessel Installation:Los ntawm kev tswj hwm nrujTsawg dua los yog sib npaug li 2.0 mmkab pheeb ces kaum squareness tolerances, peb nplooj swb smoothly mus rau hauv lub nkoj qhia lem tsis jamming los yog galling, tiv thaiv koj lub nkoj racks thiab xyuas kom meej tag nrho pneumatic vibration hloov thaum lub ncuav mog qab zib tawm.
● Absolute Perimeter Fluid Isolation:Lub nruam 360℃robotic weld tas mus li kaw tag nrho cov ncej perimeter seams, yuam 100% ntawm cov txheej txheem slurry los ntawm lub ntsej muag lim dej thiab tshem tawm ntug- bypass to rau hauv cov kab huv huv.
● Daim ntawv thov -Tshwj xeeb Flux Optimization:Txawm hais tias kev ua haujlwm siab -viscosity resins lossis sub-micron chemical catalysts, peb kho qhov warp- mus rau -weft hlau diameters thiab cov kab sib chaws qhov tob kom txo qis thawj zaug huv si - sab siab poob.
Xa koj cov nplooj ntawv tam sim no rau peb, lub nkoj hom, mesh yuav tsum, lossis cov duab puas. Peb pab neeg ua haujlwm engineering yuav tsim serialized CAD daim duab thiab cov ncauj lus kom ntxaws hauv 24 teev.
Peb qhov chaw nyob
Room 1310-5, Block A, Zhongliang Plaza, No. 345 Youyi North Street, Lianmeng Road, Xinhua District, Shijiazhuang City, Hebei Province, Suav teb 050061
Xov tooj
+8615076820259
E -mail
jesse@chgmetal.com
FAQ
Q: 1. Koj tuaj yeem lav tau li cas tias koj cov nplooj hloov lim yuav haum rau peb cov hom lim dej?
A: Peb tuav cov khoom siv hluav taws xob CAD kos duab kos duab rau lub nkoj loj thoob ntiaj teb, suav nrog Amafilter, Sharplex, Sparkler, LFC Lochem, thiab Niagara. Los ntawm kev txheeb xyuas peb qhov loj me -tag nrho cov kab dav dav, vaj huam sib luag qhov siab, thiab qhov hluav taws xob qhov hluav taws xob qhov hluav taws xob geometry- peb lav 100% poob- nyob rau hauv haum yam tsis muaj kev hloov kho lub cev rau koj lub nkoj racks.
Q: 2. Cov ntaub ntawv dab tsi peb yuav tsum tau muab kom tau txais kev cai kos duab kos duab thiab hais lus?
A: Txhawm rau muab cov lus qhia meej meej, peb xav tau lub lim dej hom / qauv, tag nrho cov nplooj suav, tag nrho nplooj siab thiab dav, hom nozzle (piv txwv li, sab saum toj- tawm lossis hauv qab- tawm nrog O- nplhaib zawj), lub hom phiaj micron ntsuas, thiab kev khiav dej num chemistry / kub.
Q: 3. Koj qhov hnyav - cov nplooj ntoo tuaj yeem ua haujlwm siab -frequency pneumatic vibration thaum lub ncuav mog qab zib tawm?
A: Yog. Peb U-channel sab nrauv thav duab yog tsim los ntawm hnyav- ntsuas stainless hlau nrog lub kaum ntse ntse gussets. Vim hais tias lub thav duab squareness yog tuav rau $\\le 2.0\\text{mm}$, 100% ntawm pneumatic vibrator lub zog txhua yam raug xa ncaj qha los ntawm nplooj nplooj, dislodging nplaum nplaum sai sai yam tsis ua rau qaug zog tawg ntawm lub caj dab nozzle.
